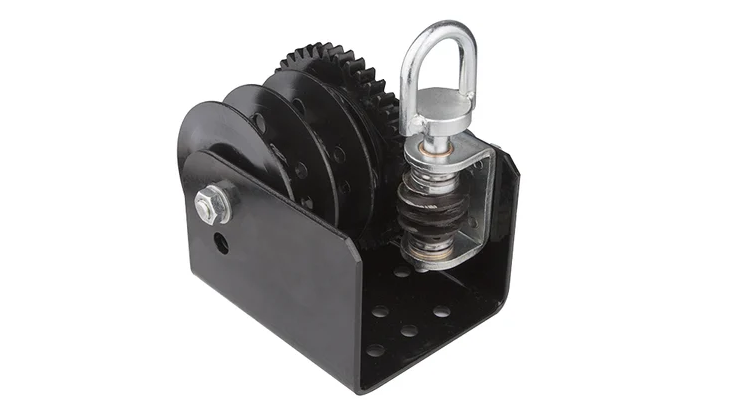

Warm Gear Winch

A manual worm gear winch is a type of winching device that utilizes a worm gear mechanism for lifting or pulling heavy loads. Here's a breakdown of its components and how it operates:

Worm Gear Mechanism

At the heart of the manual worm gear winch is the worm gear mechanism. This consists of a worm screw (a threaded shaft) and a gear wheel (a toothed wheel) meshed together. When the worm screw is turned by a handle or crank, it rotates the gear wheel, providing the mechanical advantage needed to lift or pull heavy loads.

Handle or Crank

Similar to other manual winches, a handle or crank is used to operate the worm gear winch. By turning the handle or crank, the user engages the worm screw, which in turn rotates the gear wheel and winds or unwinds the cable or rope.

Drum

The drum is the spool around which the cable or rope is wound. As the worm gear mechanism is operated, the drum rotates, winding in the cable to lift the load or releasing it to lower the load.

Cable or Rope

The cable or rope used with a manual worm gear winch is typically made of steel wire or synthetic materials. It is attached to the load being lifted or pulled and wound around the drum of the winch.

Brake or Locking Mechanism

Many manual worm gear winches incorporate a brake or locking mechanism to hold the load in place once it has been lifted or pulled to the desired position. This prevents the load from slipping or releasing unintentionally.

Manual worm gear winches are commonly used in various applications where precise control and mechanical advantage are required for lifting or pulling heavy loads. Their compact design and robust construction make them suitable for use in construction, marine, agriculture, and industrial settings. Additionally, they are often preferred in situations where electric power is unavailable or impractical, as they can be operated manually with minimal effort.
