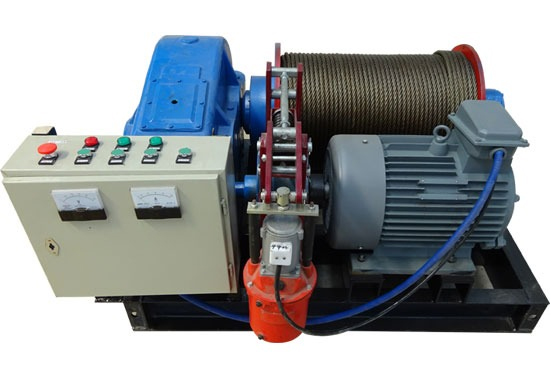

3 Ton Electric Winch Machine
| MODEL | GKS 3000 KG WINCH MACHINE |
|---|---|
| BASE FRAME | Fabricated with rolled steel section/plates properly ribbed floored with plate for working area with lifting lugs provided. Weight= 800 KG |
| ROPE DRUM | Fabricated with rolled steel section/plates properly ribbed floored with plate for working area with lifting lugs provided. Weight= 800 KG |
| REDUCER | 1st Stage planetary gear box 7.5 hp |
| MOTOR | High torque class `F` insulation, 440 volt, 1440 rpm, 5 HP, 50 Hz, 3 phase A.C. insulation squirrel gauge motor. C.D.F:- 40% (BREAK MOTOR) |
| DRUM & PINION SHAFT | Make of EN8 forged steel material. |
| SPEED OF ROPE | 4 Meters / minutes. |
| BRAKE | WILL BE PROVIDED IN MOTOR |
| COUPLING | motor will be mounted and input shaft gear box . |
| CONTROL | The winch is operated by reverse forward switch with vfd controller panel bord |
| PAINTING | Two coats of red oxide and enamel Paint. |
