High Mast Winch
This winch has been specifically developed for servicing high mast lighting systems.
It is used for lowering the lights dowin the mast for all servicing requirment.
High factors of safely and top grade materials ensure reliabilty and safety for years.
Winch has a number of unique features whinh make it a leader.
Single Gear Double Drum Winch Machine
| Product ID | Working Load (In Kg) | Wire Rope (in mm) | Height (In Mtr) | Mounting(in mm) |
|---|---|---|---|---|
| SGDD 12/5 | 150KG | 5 MM | 12 Mtr | 100x100 |
| SGDD 16/6 | 350 KG | 6 MM | 16 Mtr | 125x125 |
| SGDD 20/6 | 350 KG | 6 MM | 20 Mtr | 125x125 |
| SGDD 20/6 | 500 KG | 6 MM | 20 Mtr | 150x150 |
| SGDD 30/6 | 750 kg | 6 MM | 30 Mtr | 150x150 |

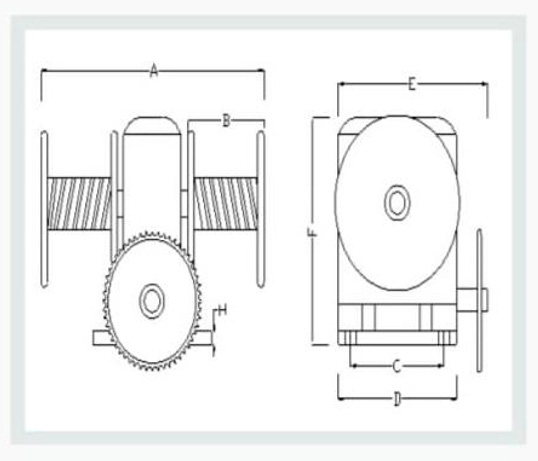

Double Gear Double Drum Winch Machine
| Product ID | Working Load (In Kg) | Wire Rope (in mm) | Height (In Mtr) | Mounting(in mm) |
|---|---|---|---|---|
| DGDD 20/6 | 650KG | 6 MM | 20 Mtr | 95x 224x 185 |
| DGDD 30/6 | 800 KG | 6 MM | 30 Mtr | 95x285x185 |
| DGDD 35/6 | 800 KG | 6 MM | 35 Mtr | 95x285x185 |
| DGDD 35/8 | 800 KG | 6 MM | 30 Mtr | 95x360x185x325 |
A high mast winch, also known as a high-rise winch or mast raising system, is a specialized type of winch designed to raise and lower tall structures such as lighting masts, antennas, flagpoles, and other vertical fixtures. Here's an overview of its components and functionality:
Winch Mechanism
The core component of a high mast winch is the winch mechanism itself. This mechanism typically consists of a drum around which a cable or rope is wound, similar to other types of winches. However, in the case of a high mast winch, the drum is specifically designed to handle the vertical movement of a tall structure.
Cable or Rope
The cable or rope used with a high mast winch is typically made of steel wire or synthetic materials like nylon or polyester, depending on the load capacity and environmental conditions. This cable is attached to the structure being raised or lowered and wound around the drum of the winch.
Mast Support System
High mast winches are often accompanied by a support system to stabilize the mast during the raising and lowering process. This may include guide rails, braces, or other structural components to ensure the mast remains straight and stable throughout the operation.
Control System
A control system is used to operate the high mast winch, allowing users to raise or lower the structure with precision and control. This may include manual controls such as levers or switches, or it could be automated with the use of electronic controls and sensors.
Safety Features
Safety is paramount when operating a high mast winch, especially when dealing with tall structures. As such, these winches often incorporate safety features such as overload protection, emergency stop mechanisms, and fail-safe braking systems to prevent accidents and ensure the safety of personnel and equipment.
High mast winches are commonly used in various applications where tall structures need to be raised or lowered for maintenance, installation, or adjustment purposes. This includes sports stadiums, outdoor event venues, industrial facilities, and telecommunications infrastructure sites. The versatility and reliability of high mast winches make them an essential tool for safely and efficiently managing vertical structures of varying sizes and configurations.
