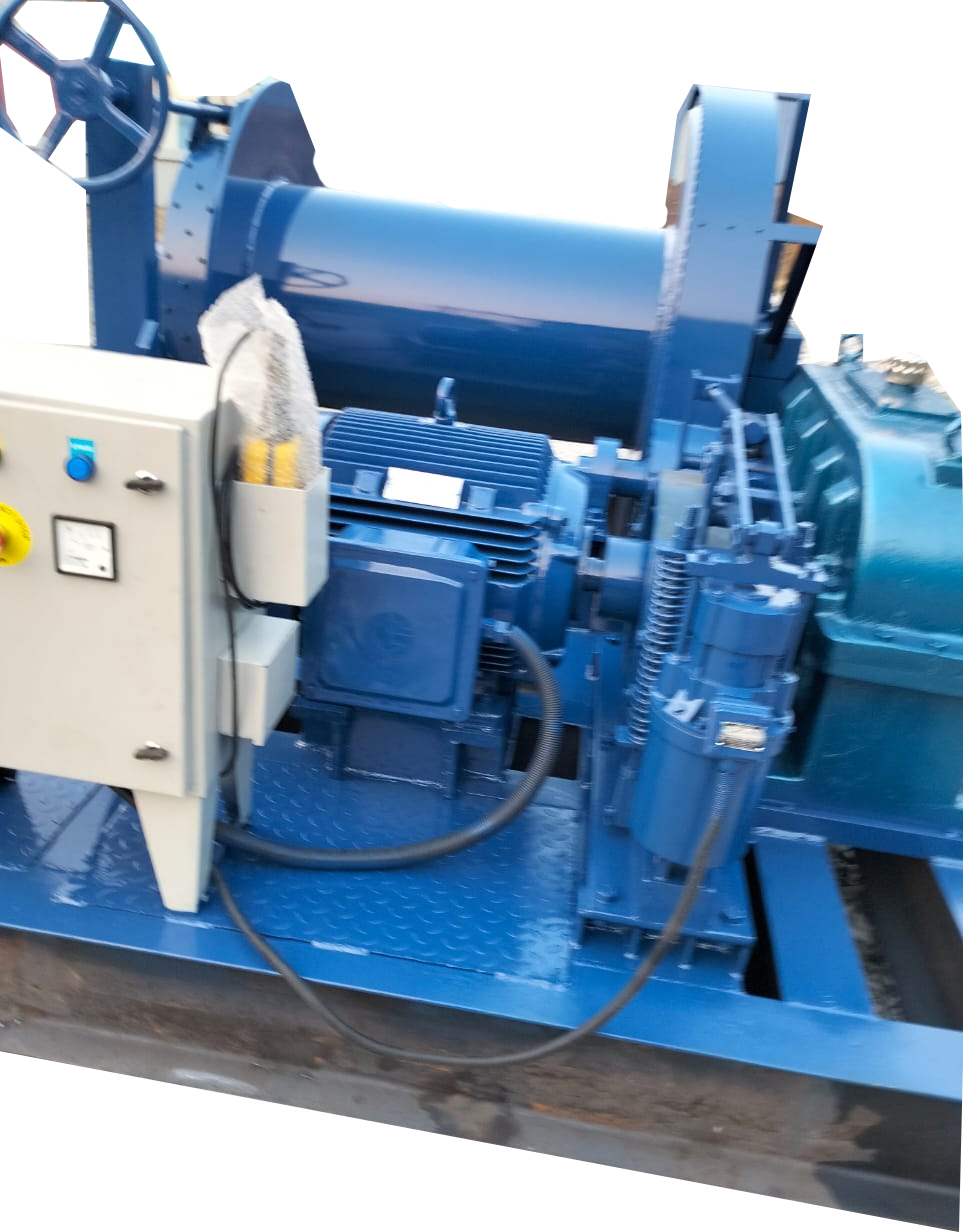

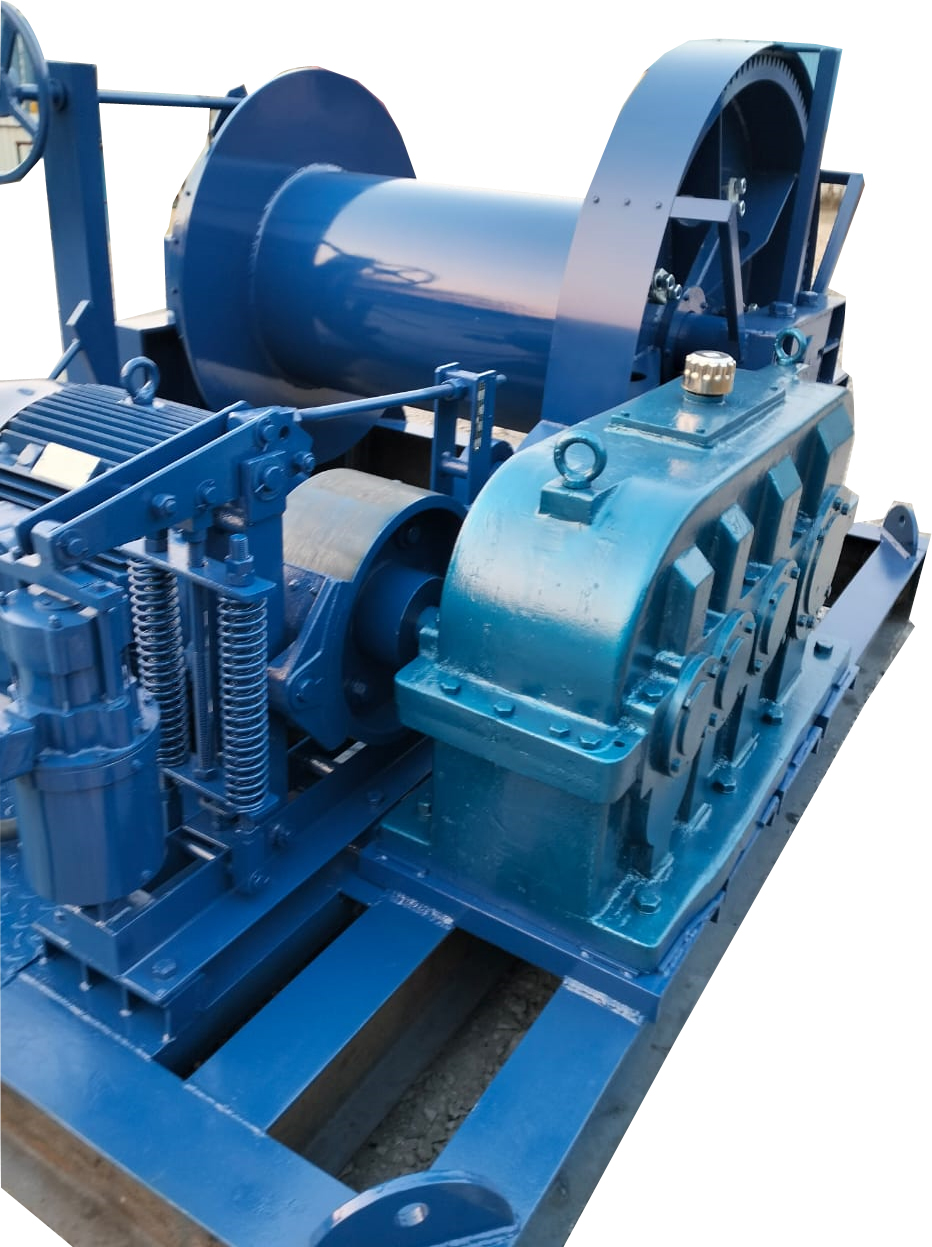

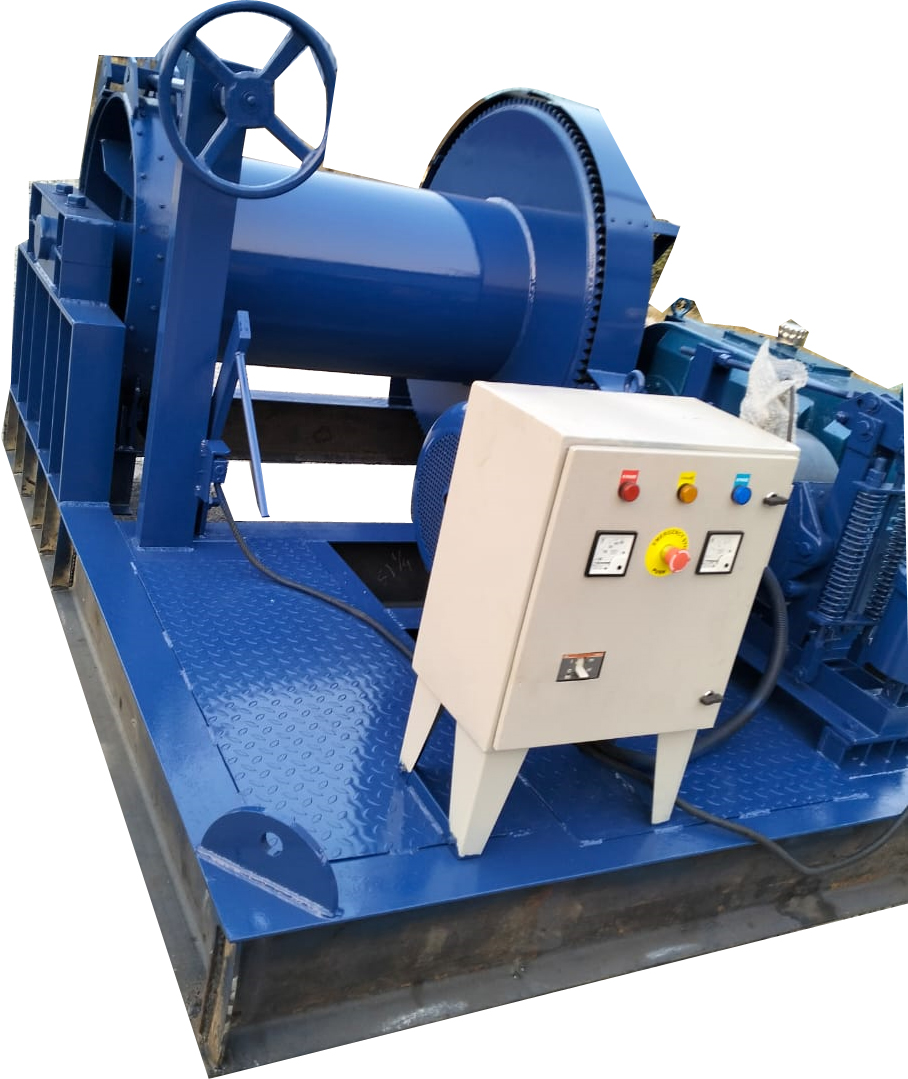

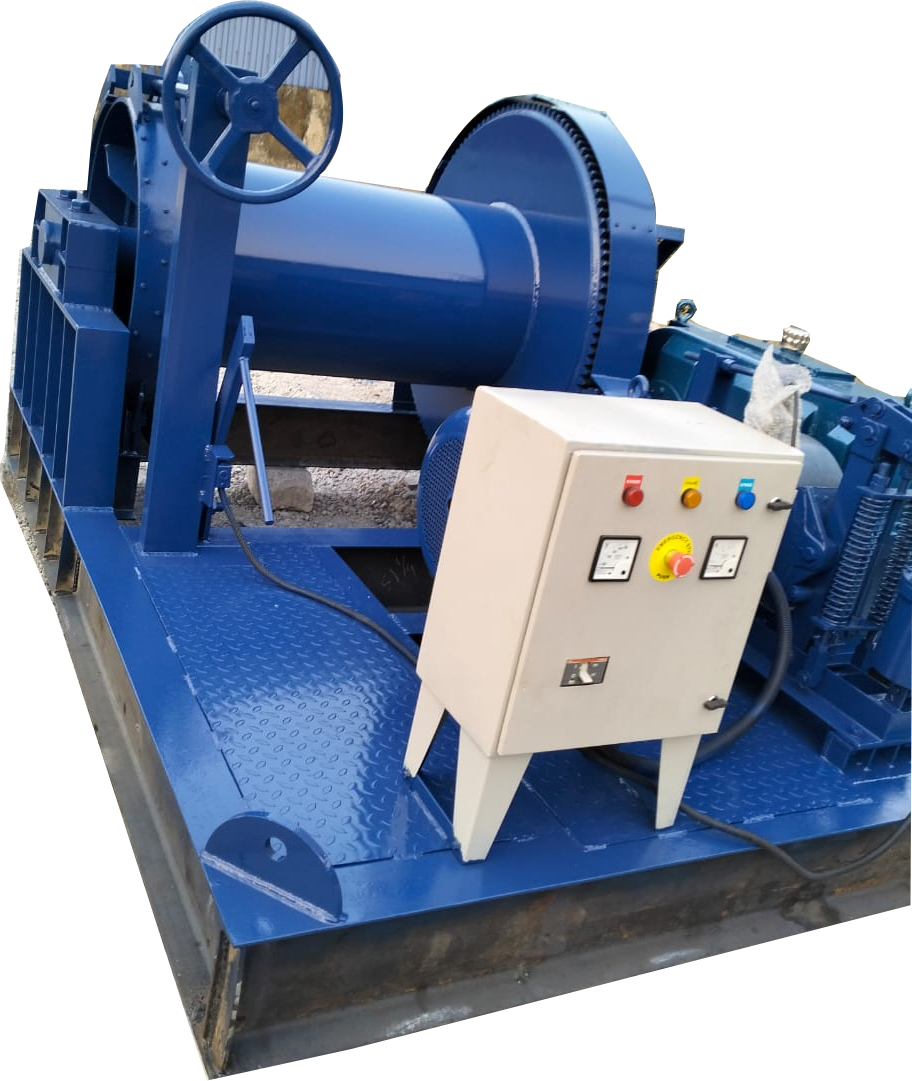

25 Ton Winch Machine
| MODEL | GKS 25 TON ELECTRIC WINCH MACHINE |
|---|---|
| BASE FRAME | Fabricated with rolled steel section/plates properly ribbed floored with plate for working area with lifting lugs provided. Weight=3500 KG, IS MB Size = 250mm x 125mm. |
| ROPE DRUM | Drum fabricated with seamless pipe duly machined with flange at both and with roller bearing on both flange. DRUM CAPACITY:- 500 meters, WIRE ROPE :- 32mm |
| REDUCER | 1 st Stage CRANE DUTY HELICAL Reduction gears box . 2 nd Stage Reduction with spur gear and pinion ( Gear Box) =60HP. Ratio = 1:60 |
| MOTOR | CRANE DUTY class `F` insulation, 415VOLT ±10%, 960 rpm, 40HP, 50 Hz, 3 phase A.C. insulation squirrel gauge Motor STANDARD make Crane Duty Squirrel motor C.D.F:- 40% |
| DRUM & PINION SHAFT | Make of EN8 forged steel material. |
| SPEED OF ROPE | 5 - 7Meters / minutes at last layer |
| BRAKE | Electro hydraulically Double shoe thruster brake. (Dia of brake:-400mm ) |
| COUPLING | BRAKE DRUM coupled on motor shaft and input shaft gear box pinion on out shaft of gear box . |
| CONTROL | The winch is operated by CRANE DUTY PENDULUM PUSH BUTTON forward AND REVERSED. |
| CONTROL PANEL (IP-55) | Control panel suitable for motor provided with contactor, overload relay, amp/volt meter, lamp for incoming supply, Step Down Transformer and control panel is weather proof. (VARIABLE FREQUENCY DRIVE IF REQUIRED) |
| PAINTING | Two coats of red oxide and enamel Paint |
| SAFETY FEATURES | Hand operated brake AND RACHED BRAKE for emergency stop provided. Overload tripping system for motor. Miniature Circuit Breaker & Step Down Transformer for safety of the operating personal and control panel is weather proof |
