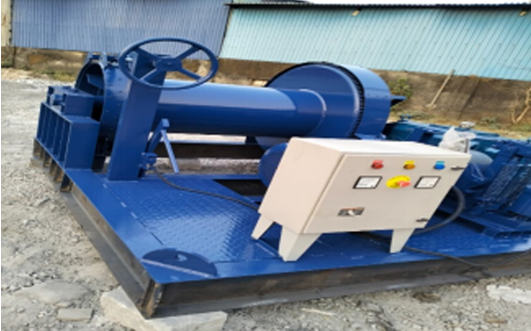

10 Ton Electric Winch Machine


500-kg-electric-winch-machine

MODEL GKS 10 Ton WINCH MACHINE
BASE FRAME Fabricated with rolled steel section/plates properly ribbed floored with plate for working area with lifting lugs provided. Weight=3000 KG, IS MB Size = 250mm x 125mm.
ROPE DRUM Drum fabricated with seamless pipe duly machined with flange at both and with roller bearing on both flange. DRUM CAPACITY:- 500 meters, WIRE ROPE :- 32mm
REDUCER 1st Stage CRANE DUTY HELICAL OR WORM Reduction gears box . 2nd Stage Reduction with spur gear and pinion ( Gear Box) =40HP. Ratio = 1:60
MOTOR CRANE DUTY class `F` insulation, 415VOLT ±10%, 960 rpm, 25 HP, 50 Hz, 3 phase A.C. insulation squirrel gauge Motor STANDARD make Crane Duty Squirrel motor C.D.F:- 40%
DRUM & PINION SHAFT Make of EN8 forged steel material.
SPEED OF ROPE 4 - 6Meters / minutes at last layer
COUPLING BRAKE DRUM coupled on motor shaft and input shaft gear box pinion on out shaft of gear box .
BRAKE Electro hydraulically Double shoe thruster brake. (Dia of brake:-300mm ) 36 KG
CONTROL The winch is operated by CRANE DUTY PENDULUM PUSH BUTTON forward AND REVERSED.
CONTROL PANEL (IP-55) Control panel suitable for motor provided with contactor, overload relay, amp/volt meter, lamp for incoming supply, Step Down Transformer and control panel is weather proof.
PAINTING Two coats of red oxide and enamel Paint.
SAFETY FEATURES Hand operated brake AND RACHED BRAKE for emergency stop provided. Overload tripping system for motor. Miniature Circuit BreakE for safety of the operating personal and control panel is weather proof
